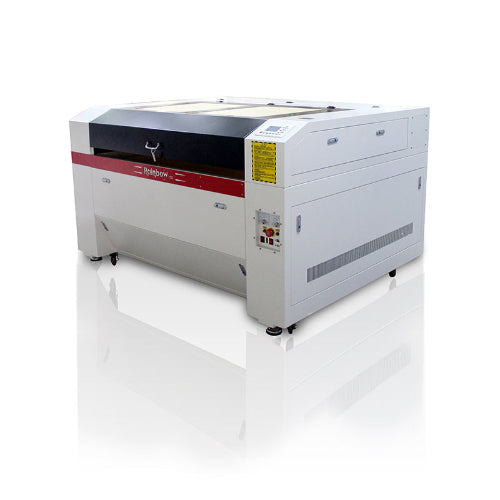

Rainbow RBL1390H Laser Engraving and Cutting Machine

The Rainbow RBL1390H is a high-performance laser engraving and cutting machine, engineered for industrial-grade precision, stability, and durability. Built with a 2mm thick steel plate frame, dual linear guide rails, and an adjustable dual-table system, this machine ensures seamless engraving and cutting on a variety of materials. Whether you are working on wood, acrylic, leather, rubber, or anodized metals, the RBL1390H delivers smooth operation, superior accuracy, and a user-friendly experience.

Key Features & Benefits

Robust & Stable Machine Housing

• 2mm thick steel frame minimizes vibration for consistent precision.
• Ensures long-term durability, even in high-speed operations.

High-Precision Linear Guide Rails

• X and Y-axis linear guide rails enable smooth and accurate motion.
• Reduces noise while allowing high-speed engraving and cutting.

Adjustable Dual-Table System

• Height-adjustable platform accommodates thicker materials for deep engraving and cutting.
• Honeycomb table securely holds small materials, preventing shifting.
• Blade table option for sturdy support of larger materials.

Advanced Laser Head & Belt System

• Industrial-grade dustproof laser head protects the focus lens, extending its lifespan.
• Built-in air-blowing system prevents flaming when cutting flammable materials.
• Infrared red-point positioning helps accurately find the starting position before engraving or cutting.
• Imported precision belt system ensures smooth X and Y-axis movement.
• Ratio wheel on the X-axis enhances engraving accuracy.

Optimized Mirror System

• Imported mirrors efficiently adjust the light path, improving laser consistency.
• High-quality mirror holders keep mirrors securely positioned for precise cutting.

Leadshine Stepper Motor for High Precision

• Premium 57mm Leadshine stepper motor and driver ensure precise movement of the laser head.
• Enables detailed, high-speed engraving and cutting with superior accuracy.

User-Friendly Ruida Control Panel

• Simple and intuitive control panel for seamless operation.
• Offline capability – No computer connection required for operation.
• USB support – Load designs directly onto the machine.

Powerful & Intuitive Software

• Easy-to-use software with English-language guides and tutorials.
• Step-by-step instructional videos included for smooth onboarding.
• Dedicated engineer support available for software and machine operation assistance.

Why Choose the Rainbow RBL1390H?

• Heavy-Duty Steel Frame – Provides stability and eliminates vibration for precision cutting.
• High-Speed Precision Movement – Dual linear guide rails and Leadshine stepper motors.
• Multi-Material Capability – Engraves and cuts wood, acrylic, leather, rubber, and more.
• Advanced Laser Head Features – Dustproof focus lens & infrared positioning for accuracy.
• Offline Control & USB Transfer – No computer required for operation.
• Comprehensive User Support – Includes software, tutorials, and expert technical assistance.

Perfect for:

🪵 Wood Engraving & Cutting | 🎨 Acrylic & Leather Engraving | 🏷️ Rubber Stamp Making | ⚡ Industrial & Creative Applications

Order the Rainbow RBL1390H Laser Machine Today!

Upgrade your engraving and cutting capabilities with industrial-grade performance and precision. Contact us now for pricing, availability, and expert support!

General Information

• Laser Power: 100W / 130W / 150W
• Control System: Ruida System
• Cooling System: Water Circulation

Performance & Precision

• Minimum Line Width: 0.01mm
• Repetition Accuracy: ±0.0001mm
• Output Frequency: 20KHz - 80KHz
• Working Speed: 0 - 500mm/s

Working Area & Table

• Working Area: 1300 × 900 mm
• Working Table: Electric Lifting Honeycomb Table

Power & Electrical Requirements

• Electrical Requirement: AC 90-250V / 50Hz 5A

Supported File Formats

• Vector Files: DXF, PLT, AI, SVG
• Image Files: BMP, JPG, PNG, GIF, TIFF
• Other Formats: G-Code, HPGL

Compatible Materials

The RBL1390H is designed for engraving and cutting a wide range of materials, including:
✔ Wood (Plywood, MDF, Hardwood)
✔ Acrylic & Plexiglass
✔ Leather & Fabric
✔ Rubber (Stamp Making)
✔ Paper & Cardboard
✔ Plastics (Non-PVC Only)
✔ Glass & Ceramics (Engraving Only)
✔ Anodized Aluminum & Coated Metals (Engraving Only)

• Laser Head with Air Blowing System (Prevents flaming when cutting flammable materials)
• Red Dot Positioning Device (For accurate starting point alignment)
• Water Pump & Tubing (For cooling the laser tube)
• Electric Lifting Honeycomb Table (For securing materials during engraving)
• USB Cable & Software Installation Package
• Exhaust Fan & Ducting (For smoke and dust extraction)
• Power Cord & Safety Keys
• User Manual & Video Tutorials

• Warranty: 12 Months (Excludes Consumables Like Laser Tube & Mirrors)
• Technical Support: Online Assistance & Engineer Support
• Software Assistance: Step-by-step tutorials & operation guides
