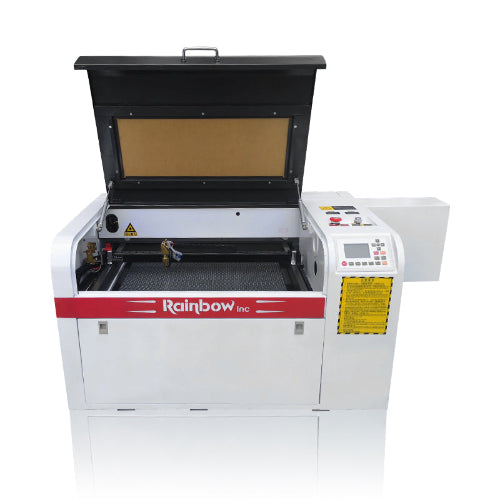

Rainbow RBL4060H Laser Engraving and Cutting Machine

The Rainbow RBL4060H is a high-performance laser engraving and cutting machine, designed for precision, efficiency, and versatility. With a sturdy galvanized steel frame, dual linear guide rails, and an adjustable working table, this machine is built for detailed engraving and precise cutting on a variety of materials. Whether you're working with wood, acrylic, leather, rubber, or metal engraving, the RBL4060H delivers exceptional results with minimal noise and maximum stability.

Key Features & Benefits

Durable & Vibration-Free Housing

• Constructed from 1.5mm galvanized steel for maximum durability and stability.
• Reduces vibration impact, ensuring consistent precision in every engraving and cutting job.

Dual Linear Guide Rails for Precision Movement

• X and Y-axis linear guide rails provide high-accuracy motion for flawless engraving and cutting.
• Reduces noise while enabling fast and smooth laser head movement.

Adjustable Dual-Table System

• Includes both honeycomb and blade table options.
• Max lifting distance: 23 cm, allowing for engraving of taller materials.

Advanced Laser Head & Belt System

• Integrated air-blowing system prevents flaming when cutting flammable materials.
• Red-dot positioning device ensures precise alignment for starting points.
• Imported X and Y-axis belts for high-precision movement in all directions.

Optimized Mirror System

• Imported mirrors provide efficient light path adjustments for consistent engraving quality.
• Premium mirror holders keep mirrors stable and properly aligned for high-accuracy cutting.

High-Performance Stepper Motor

• Precision stepper motors provide smooth and accurate movement for detailed engraving and cutting.

User-Friendly Ruida Control Panel

• Simple, intuitive control panel for seamless operation.
• Works offline – No computer connection required.
• USB file transfer support – Load designs directly onto the machine.
• Customizable economic model (M2 control system) available upon request.

Powerful & Intuitive Software

• User-friendly software for easy operation.
• Comprehensive operation guide & video tutorials included.
• Dedicated engineer support for software and machine operation assistance.

Why Choose the Rainbow RBL4060H?

• Industrial-Grade Durability – Heavy-duty steel construction for long-term use.
• Precision Motion System – Dual linear guide rails & stepper motors for accuracy.
• Versatile Engraving & Cutting – Works on wood, acrylic, leather, rubber, and more.
• Advanced Laser Head Features – Air-blowing for safety & red-point positioning for accuracy.
• Convenient Offline Control – Supports USB design transfer, works without a computer.
• Comprehensive User Support – Software, tutorials, and expert assistance included.

Perfect for:

🪵 Wood Engraving & Cutting | 🎨 Acrylic & Leather Engraving | 📌 Rubber Stamp Making | 🔥 Custom Designs & Prototyping

Get the Rainbow RBL4060H Laser Machine Today!

Upgrade your engraving and cutting capabilities with industry-leading precision and stability. Contact us now for pricing, availability, and expert support!

General Information

• Laser Power: 50W/ 60W / 80W
• Control System: M2 System / Ruida System
• Cooling System: Water Circulation

Performance & Precision

• Min Line Width: 0.01mm
• Repetition Accuracy: ±0.0001mm
• Output Frequency: 20KHz - 80KHz
• Working Speed: 0 - 500mm/s

Working Area & Table

• Working Area: 400 × 600 mm
• Working Table: Electric Lifting Honeycomb Table

Power & Electrical Requirements

• Electrical Requirement: AC 90-250V / 50Hz 5A

Supported File Formats

• Vector Files: DXF, PLT, AI, SVG
• Image Files: BMP, JPG, PNG, GIF, TIFF
• Other: G-Code, HPGL

Compatible Materials

The RBL4060H is designed to engrave and cut a variety of materials, including:
✅ Wood (Plywood, MDF, Hardwood)
✅ Acrylic & Plexiglass
✅ Leather & Fabric
✅ Rubber (Stamp Making)
✅ Paper & Cardboard
✅ Plastics (Non-PVC Only)
✅ Glass & Ceramics (Engraving Only)
✅ Anodized Aluminum & Coated Metals (Engraving Only)

• Laser Head with Air Blowing System (Prevents flaming on flammable materials)
• Red Dot Positioning Device (For easy starting point alignment)
• Water Pump & Tubing (For laser tube cooling)
• Electric Lifting Honeycomb Table (For securing materials during engraving)
• USB Cable & Software Installation Package
• Exhaust Fan & Ducting (For smoke and dust extraction)
• Power Cord & Safety Keys
• User Manual & Video Tutorials

• Warranty: 12 Months (Excludes Consumables Like Laser Tube & Mirrors)
• Technical Support: Online Assistance & Engineer Support
• Software Assistance: Step-by-step tutorials & operation guides
